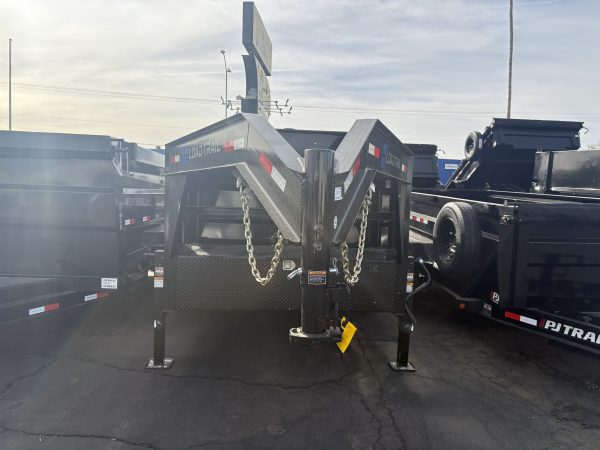

16×83 Gooseneck, Triple Axle, 21K GVWR, Telescopic, 36″ Sides, 14 Ply Tires

$20,245

Stock# LTD920
  • Condition: New
  • Year: 2026
  • Make: Load Trail
  • Unit Type: Gooseneck, Dump
  • Length: 16 ft
  • Width: 7 ft
  • 21,000 lbs – GVWR
  • 5,430 lbs – Dry Weight
  • 15,570 lbs – Payload
  • Available at: Mesa
Reserve NowRequest InfoFinancing
  • Condition: New
  • Year: 2026
  • Make: Load Trail
  • Unit Type: Gooseneck, Dump
  • Length: 16 ft
  • Width: 7 ft
  • 21,000 lbs – GVWR
  • 5,430 lbs – Dry Weight
  • 15,570 lbs – Payload
  • Available at: Mesa
Reserve NowRequest InfoFinancing

**MESA LOCATION!
CALL OR TEXT 480-218-4410
3054 E MAIN ST
MESA, AZ 85213 **

**STANDARD FEATURES**

Heavy-Duty Triple Axle Dump Trailer – 21K GVWR | 36″ Sides | Telescopic Cylinder | Black w/ Primer
This 21,000 lb GVWR triple-axle dump trailer is engineered for maximum payload, durability, and performance on the toughest jobsites. Built for contractors, excavation crews, and heavy-haul applications, it features premium components throughout and a rugged black finish with primer, ready for work or customization.
Key Specifications & Features:
– 3 – 7,000 lb Dexter Spring Axles
o Electric FSA brakes on all three axles for superior stopping power

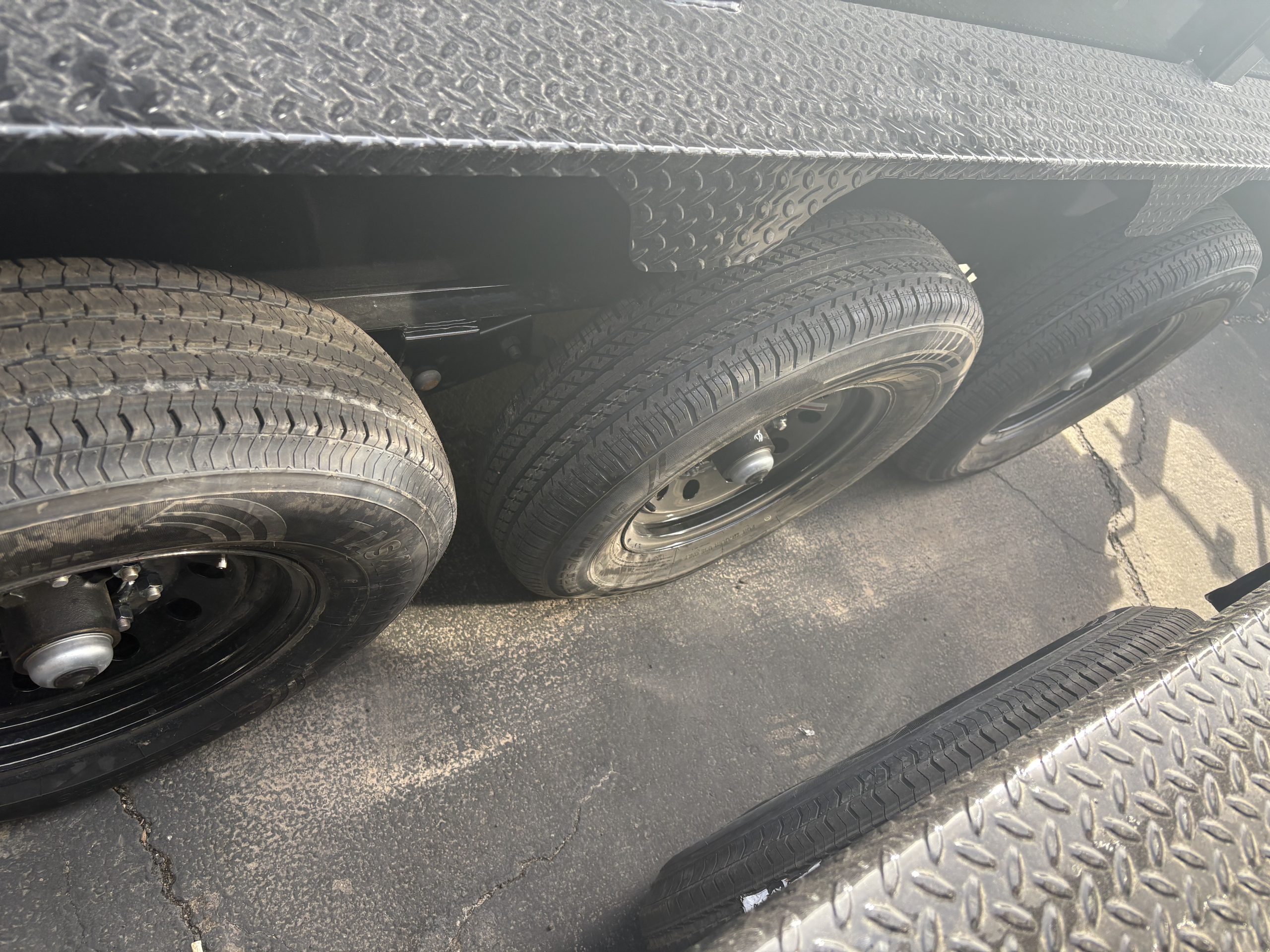

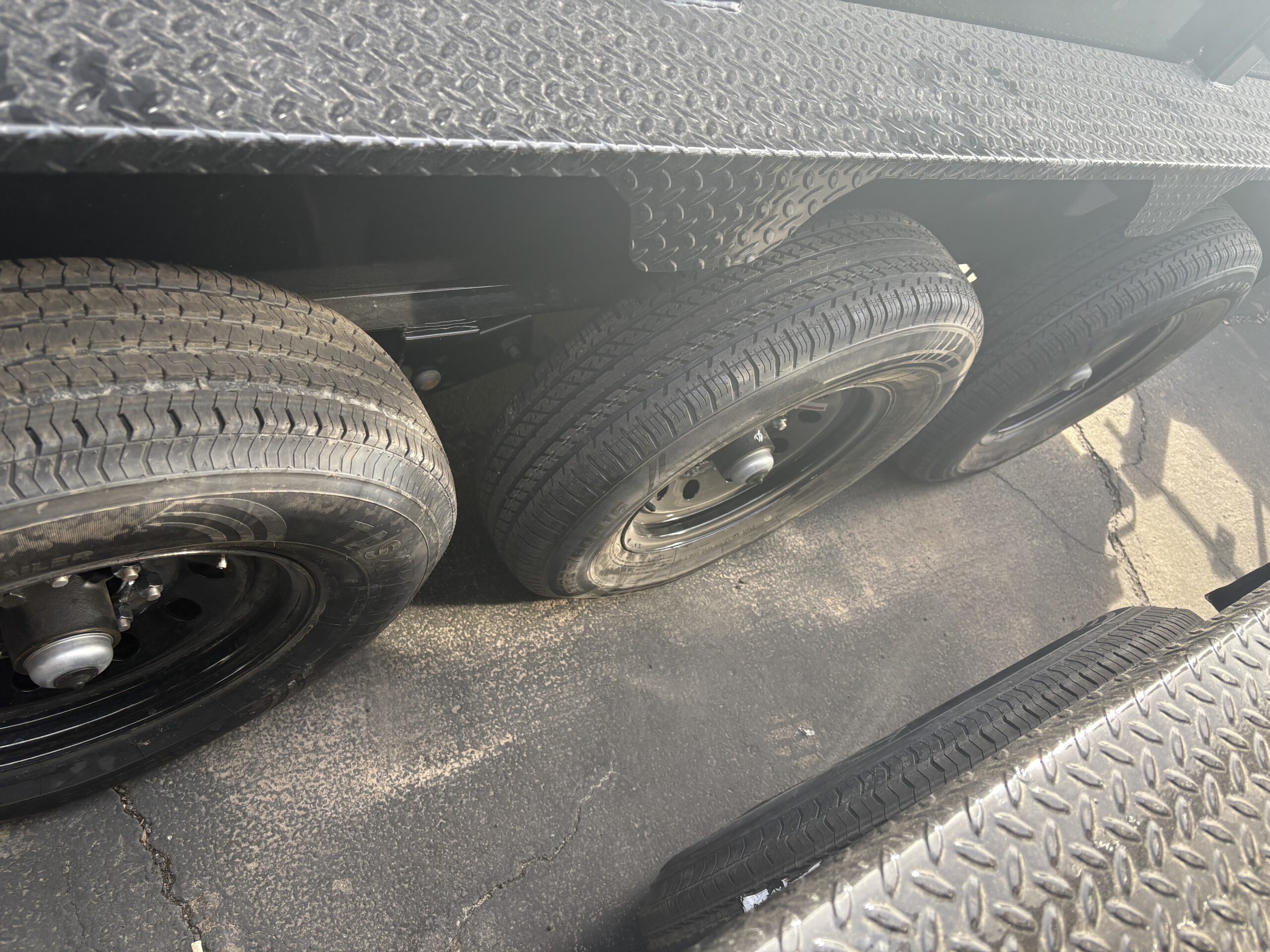

– ST235/80R16 LRE 10-Ply Tires
o Mounted on black steel wheels
– 2-5/16″ Adjustable Coupler
o 12 lb rated with standard neck and coupler
– Weld-On Diamond Plate Fenders
o Heavy-duty protection with a professional look
– 16″ Cross-Members
o Built to support extreme loads and long-term use

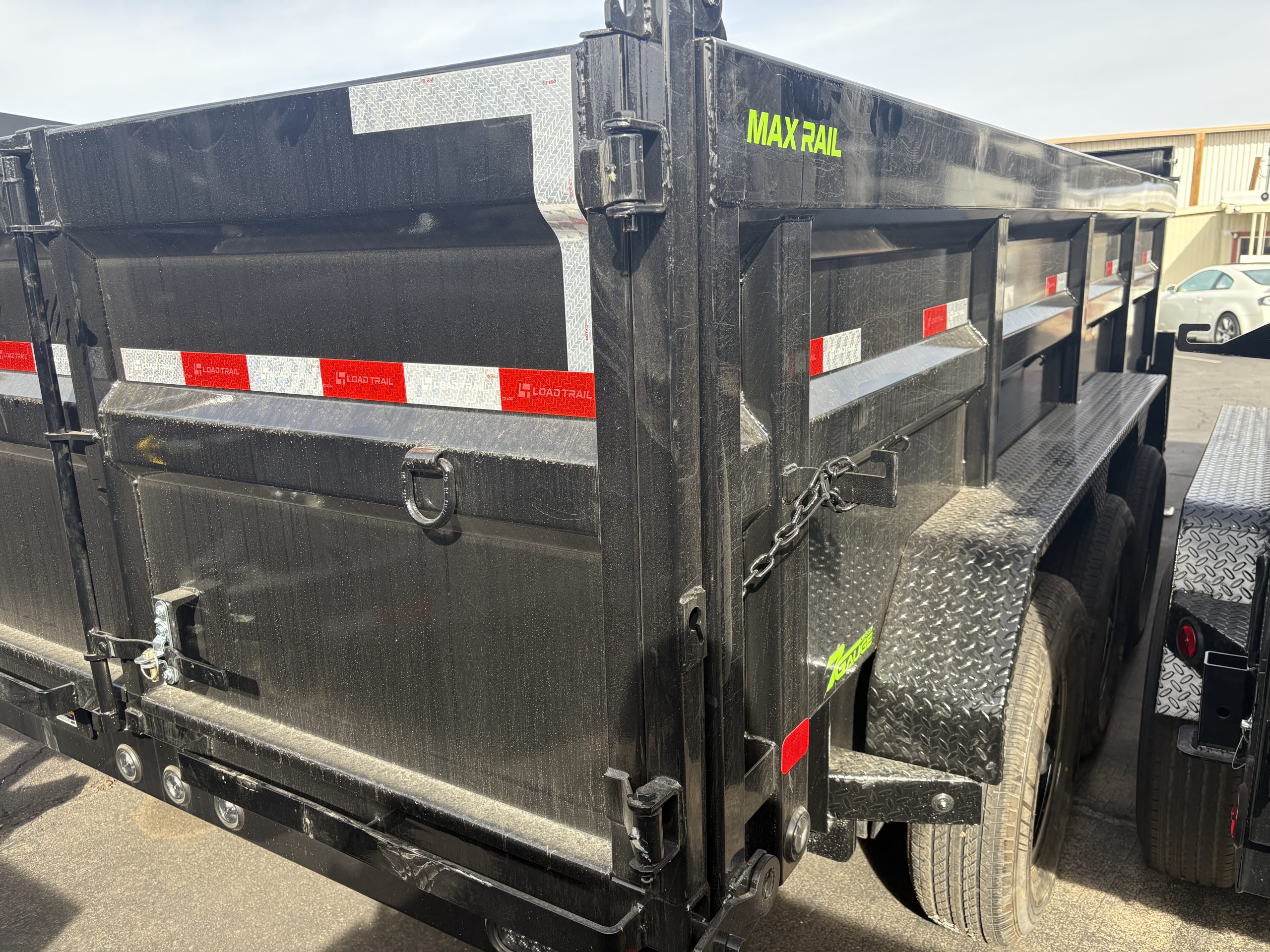

– 36″ Dump Sides

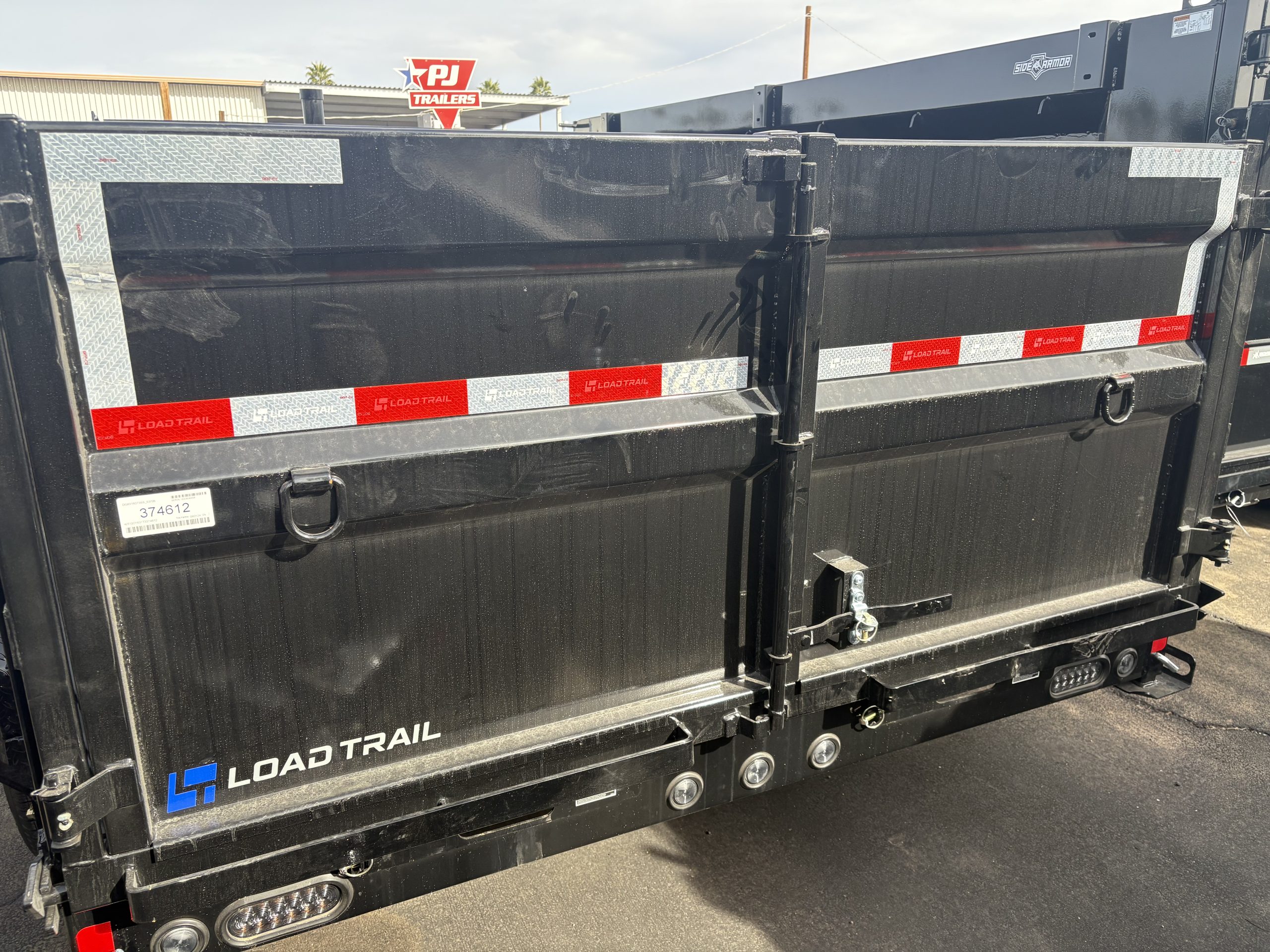

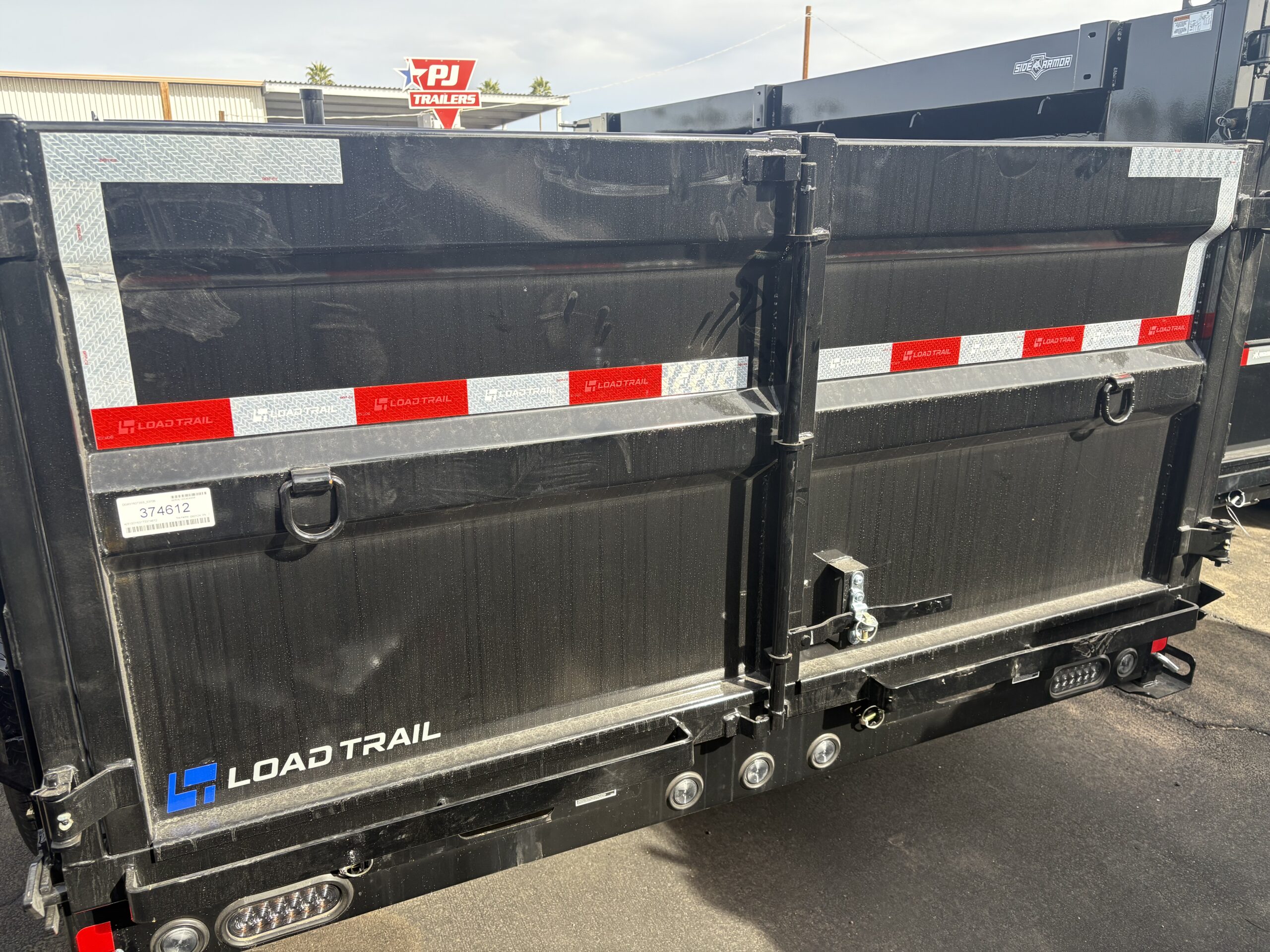

o Includes 36″ two-way rear gate
o 7-gauge steel floor for maximum strength and abrasion resistance
– Rear Slide-In Ramps
o 80″ x 16″ for loading skid steers and compact equipment
– Spring-Loaded Drop-Leg Jack
o 2-speed, 10K rated
– All-LED Lighting
o Includes cold-weather wiring harness
– 4 Weld-On D-Rings (4″)
o Secure tie-down points for equipment and cargo
– Full-Width Front Tool Box
o Mounted between risers for safe, convenient storage
– Telescopic Hydraulic Cylinder
o Delivers smooth, powerful lift with excellent dump angles
– Standard 5-Amp Battery Wall Charger
– Top-Mount Tarp Kit
o Keeps loads contained and DOT compliant
– Rear Support Stands
o Constructed from 2″ x 2″ heavy-duty tubing
– MAX-STEP (30″)
o Safer, easier access into the trailer
Built for Maximum Payload & Professional Use
With triple 7K Dexter axles, a heavy 7-gauge floor, 36-inch sides, and a telescopic cylinder, this dump trailer is built to handle gravel, dirt, demolition debris, asphalt, and heavy equipment with confidence. If you need a 21K dump trailer with slide-in ramps and tarp kit, this unit is designed to outperform on every job.
